November 2014 - Reverb and delay: the
two basic effects for a Dub mix. In this
third chapter of REASON 8.0 IN DUB, both
effects are subject to a deeper reviewing in
word, sound and sight. Another original
Reggae riddim was created, rendered to eight
audio tracks and imported into a multi-track
DUB set up in Reason. A report.
we'll take a look at some of the delay and
reverb devices and -more important- see and
hear them in action, a few words about
creating a riddim in Reason. Reason 8.0's
new browser is a tremendous help during this
process. Where it's rather obvious how the
quality of the work-flow had dramatically
improved since Reason 3.0, this browser in
itself contributes significantly to it.
Picking sounds for your sampler or drum
computer goes very quick, especially when
you use the drag-and-drop possibilities.
it or hate it: the Neptune Voice Synthesizer
does it's work quite well. Just load a few
vocal samples and make sure they're fit in

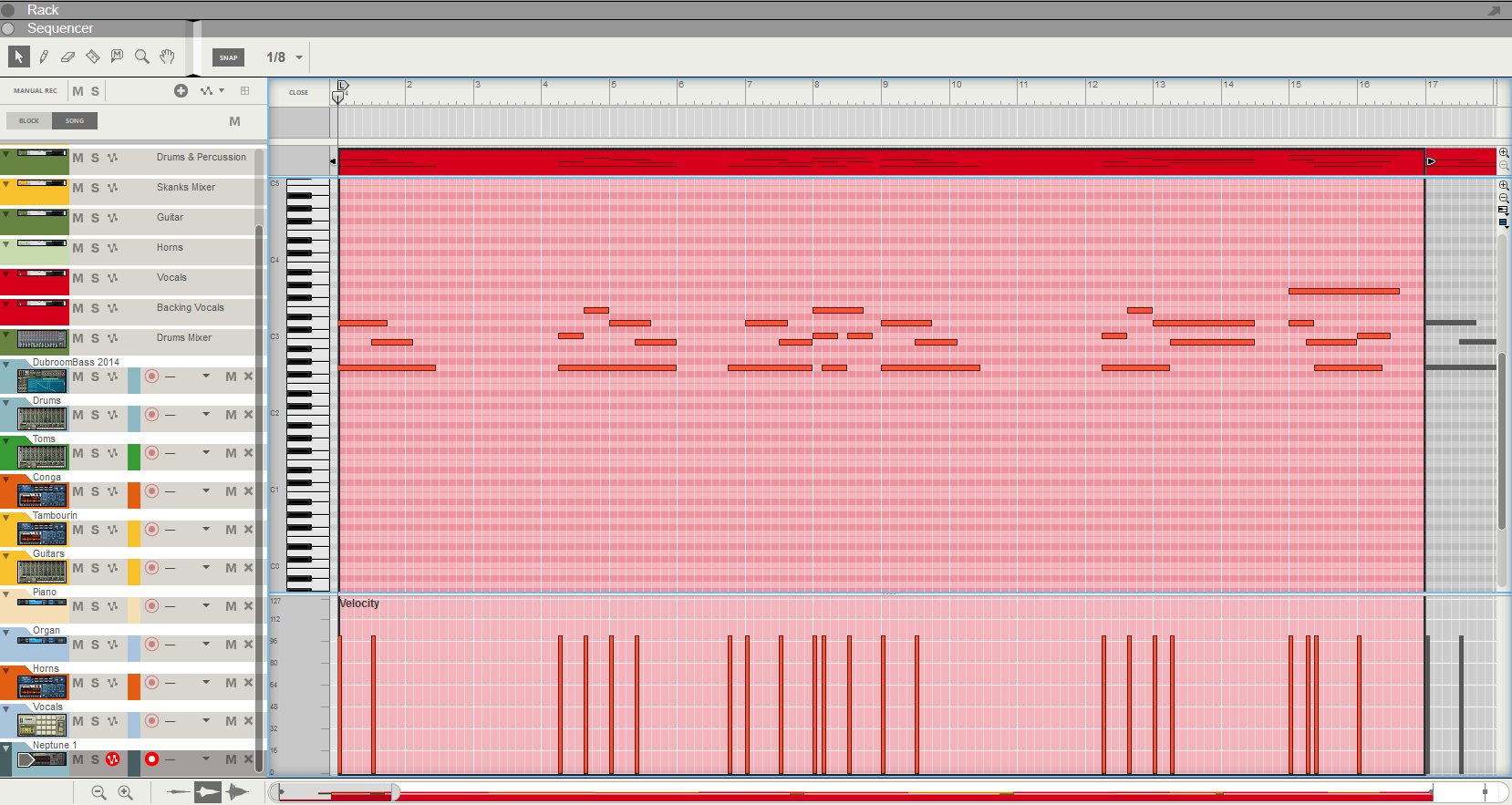

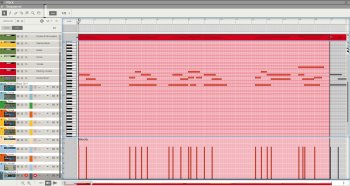

make a little midi harmony in the Neptune's
sequencer channel (see picture right, click
to enlarge), make sure the vocals feed the
Neptune and you have your very own harmony
vocals 21th century style.

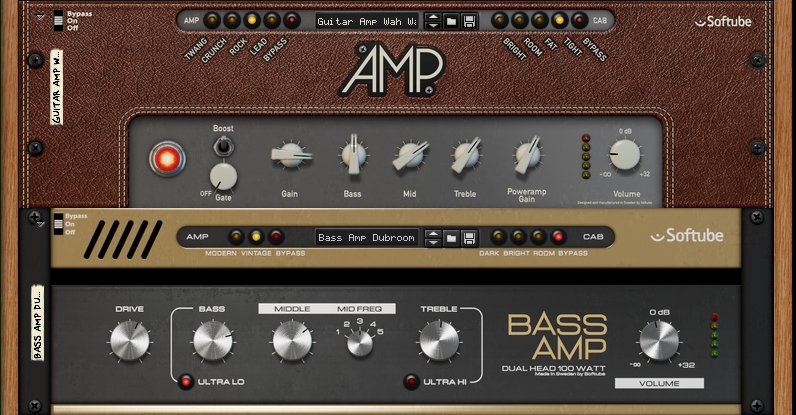

thing worth mentioning here are the two amps
created by Softube that ship with Reason
want to use real guitar sounds next to the
real bass guitar sounds, both the guitar amp
and the bass amp do a wonderful job. The
wah-wah guitar you'll hear in the mix has a
significant better sound when run through
the amp and so does the bass.
riddim is as easy as your inspiration will
let you fill in the blank sequencer. It does
take computer power, though. Even running
the DAW in 64 bit modus with full 8
gigabytes available will not let you set up
a complete Dub environment while using all
the instruments. Rendering your riddim to
audio tracks solves that problem and will
bring you directly in the situation wherein
Dub is actually made: after all, it's a
remixing technique of multi-track recordings
this series, a special multi-track Dub
environment was created in Reason.
Unfortunately it's not possible to make the
stems available for download because of
license limitations, but when you take a
look at the Dubroom's tutorial on making Dub
with computers or at the graphic right
(click to enlarge), you'll get the idea.
This is the principal according to which the
Dub environment is set up.
Reason's console has eight auxiliary
outputs, you'll have the possibility to
connect six effects. Route the output of the
effect devices to a channel input and you
can layer effect over effects. This is
exactly what's going to be done quite
heavily in the Dub that was made for this

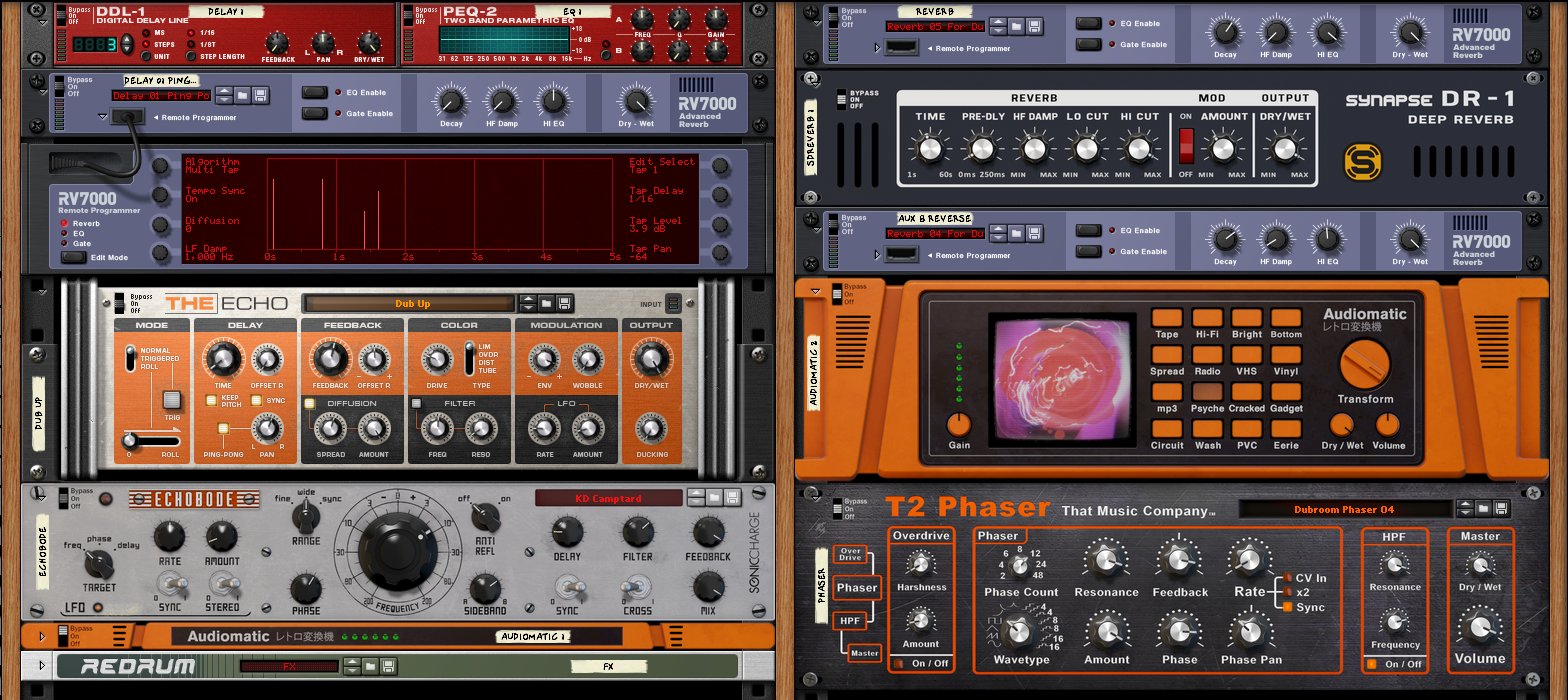

take a closer look at the effects
1: DDL-1 Delay -> PEQ-2 EQ
2: RV-7000 Ping-Pong Delay
3: THE ECHO with a Dubroom preset
4: RV-7000 Reverb and/or Synapse DR-1
5: Echobode Rack Extension (random
6: T2 Phaser (Dubroom preset)
7: Audiomatic (Psych preset)
8: RV-7000 Reverse Reverb
the Dub mix, you'll hear both reverb devices
or just the DR-1. At the console, the two
channels at the far right feed the devices.
There is quite a difference to be heard when
you hear both reverb devices, as both
devices come back into the console in the
same channel. To achieve this set up, use
was made of the FREE Audio merger
Rack Extensions by Blamsoft.
a little bit from the Echobode Rack
Extension. This is a frequency shifter and
delay device that at this point is yet to be
reviewed deeper. THE ECHO is taken to a
deeper level as well. Of course, the manual
delay (aux 1, more info here)
and the RV-7000 with a Dubroom Ping Pong
delay preset are featured.
Phaser (available for around 15 euro at the
propshop) does some crucial things to the
drums. A Dubroom preset is used for it. This
is a heartically recommended Rack Extension.
Just listen to what it does with the drums!
Look and listen:
feeds like the Ping Pong delay, which at
it's turn feeds THE ECHO. That's just one
layering of effects used in this mix.
There's a lot more going on, all possible
because of the way everything is routed.
Tweaking the EQ on the reverb channel is
quite effective, but that was already made
clear in the previous dub mixes.
easy to create Dub effects in the lower
frequencies (read: bass line), but both the
DR-1 and the RV-7000 showed to be perfectly
able to deal with the deeper realms. They
sound nice together as well.
conclude, a word about the Echobode. The
first audible patch was taken and the thing
tweaked just a little bit, without being
hindered by any knowledge of the device
itself. This in itself showed a potential
that most certainly will be looked at more
